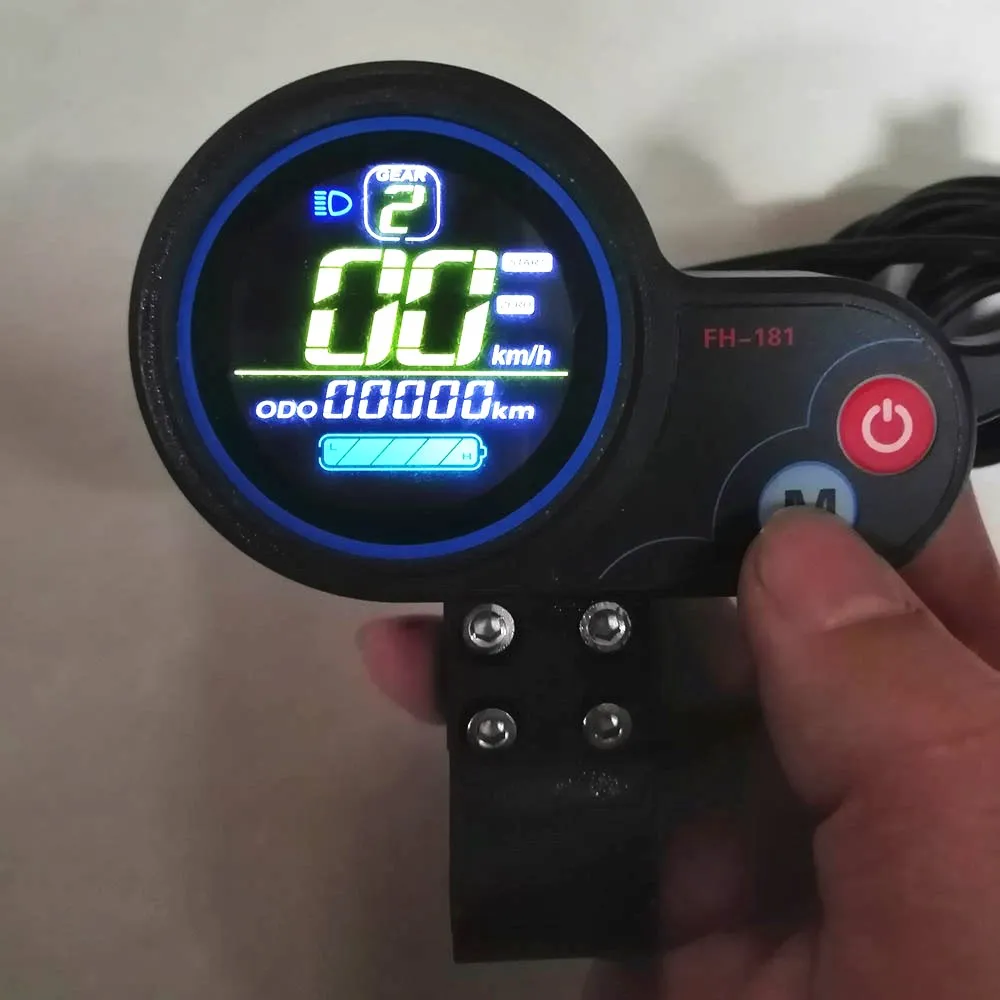

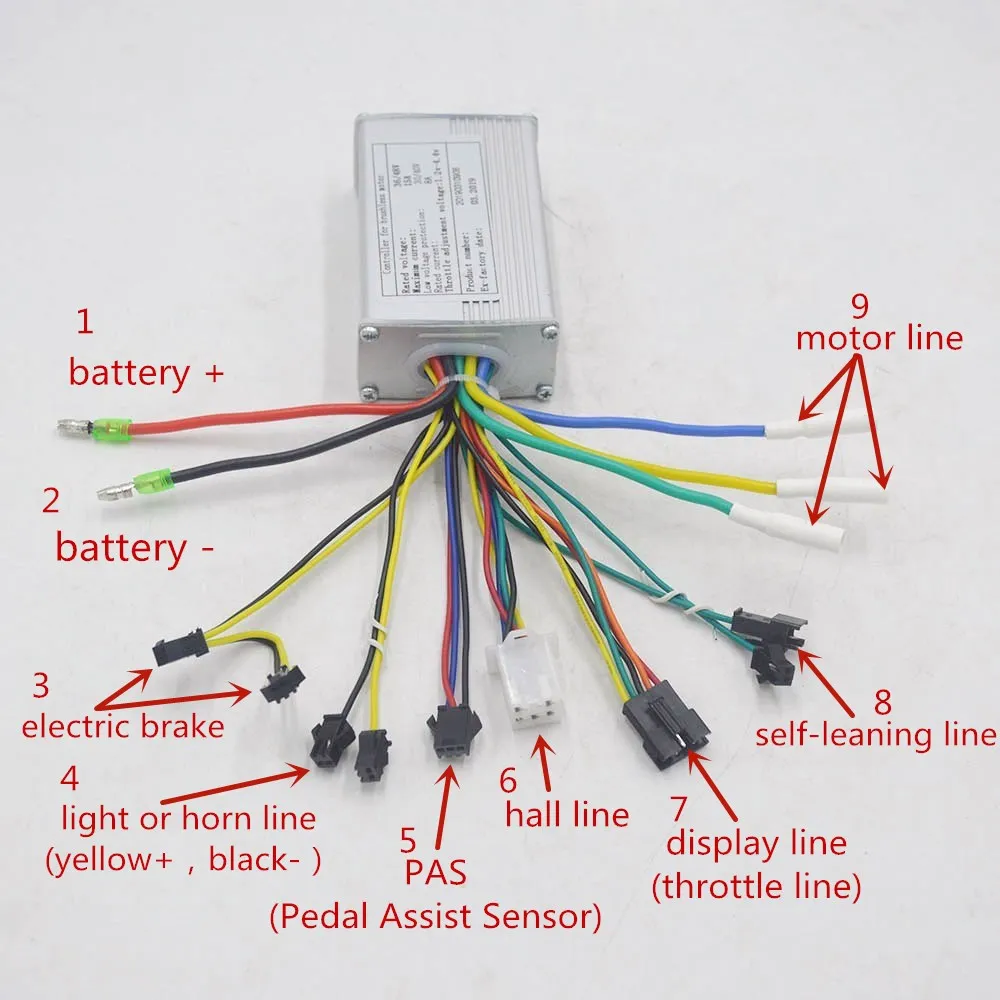

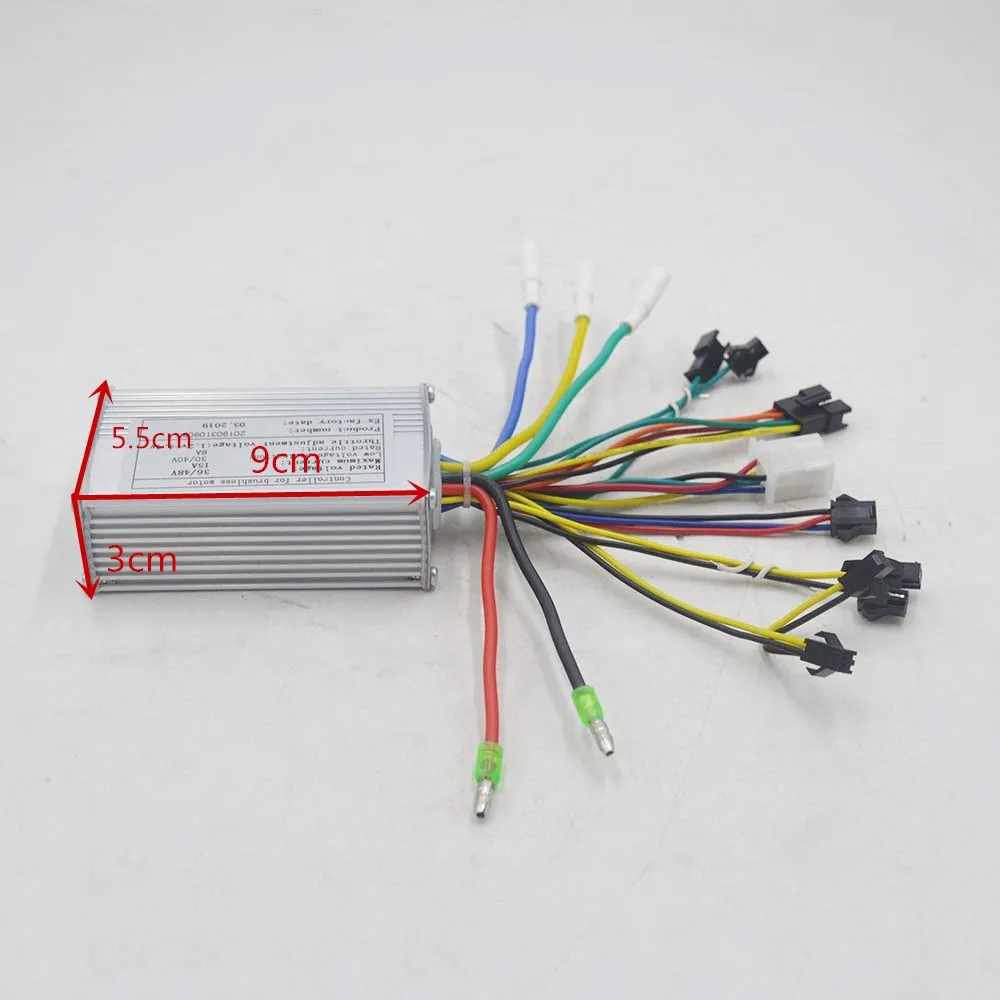

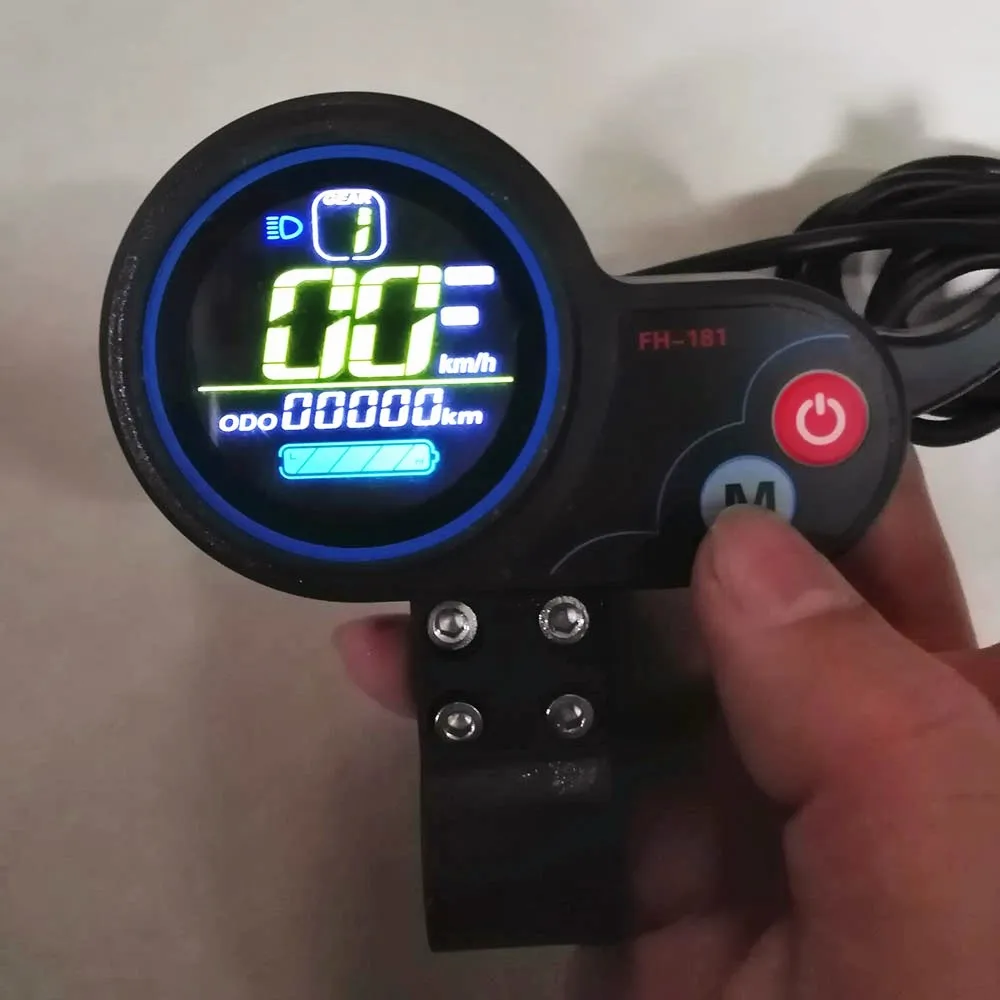

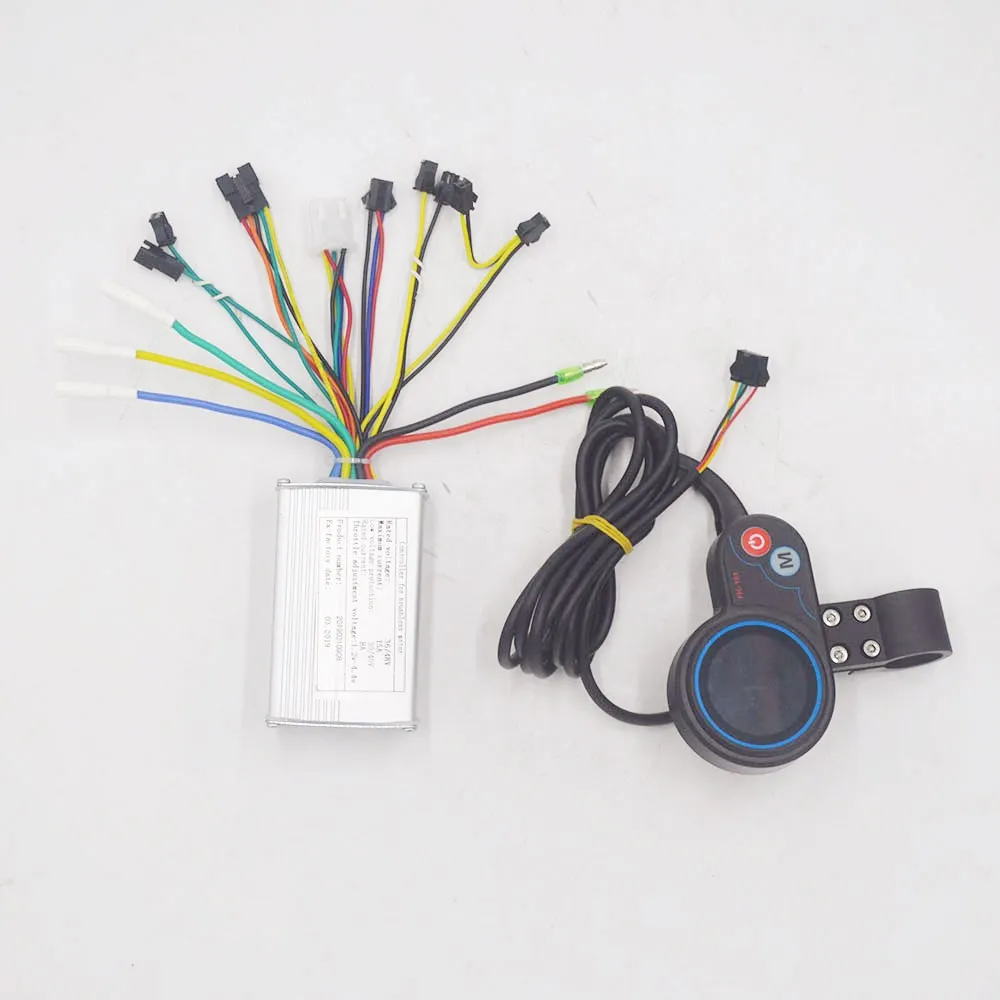

ebike controller kit 250W 350W 24V/36V/48V DC Mode escooter Brushless Motor Controller with electric bike LCD Product Details: Motor style: Brushless Weight:700g Rated voltage: 36V 48V Rated power:250W 350W Low-Voltage Protection: 24V:19+-0.5V 36V:29+-0.5V 48V:39+-0.5V Current:15A(350W) , 13A (250W) Current Limite: 250W:13A+-1A 350W:15A+-1A Use for: electrice scooter,Electrci Tricycle,ebike,e-scooter,e-car,e-golf car etc Package include: 1pcs*controller with LCD screen(throttle) Screen Show: 1. The current speed is displayed 2. Battery charge (voltage) display 3. Accumulated mileage display 4. Single mileage display 5. Headlight display 一、 Working voltage: 36V/48V(Two voltages can be set） 二、 1. Red line: positive input of power supply 2. Black line: negative power supply 3. Blue line: controller electric door lock 4. Green Line: Communication Receive 5. Yellow line: communication launch 三、 1. Display function speed display, power indicator, fault prompt, headlight indication, cruise indication, gear indication, total mileage, single mileage, real-time voltage, running current, running time, startup mode, etc. 2. Multi-function display area Total mileage ODO, single mileage TRIP, real-time voltage V, operating current A, running time TIME, fault code E 3. Fault status display area E, when the ! symbol is flashing, short press the ON/OFF key to adjust the display interface to the E interface. The corresponding number under the interface represents the corresponding fault content. The specific status is as follows: ERRO 1: Motor failure ERRO 2: Turning fault ERRO 3: Controller failure ERRO 4: Power brake ERRO 5: Undervoltage protection ERRO 6: Communication failure, the instrument does not receive the output of the controller ERRO 7: Communication failure, the controller does not receive the output of the meter 4. Short press MODE button, the gear position will cycle, the higher the gear position, the faster the speed. 6. After the motor is running, maintain the speed control handle for 5 seconds. The cruise symbol lights up. After the handle is released, the motor maintains the original speed. Brake or dial the speed control handle again and return it to the cruise state. 7. Non-zero start NON symbol is lit Zero start ZERO symbol is lit 8. When a data cable is connected to the USB interface of the meter and draws more than 100 mA from it, the USB icon lights up. If the icon is flashing, the load is in intermittent charging or the load current exceeds 500 mA. The USB interface automatically turns on the protection mode. 9.Press and hold two buttons at the same time to enter the settings: P03: Voltage level: 24V, 36V, 48V P06: Wheel diameter: unit, inch; accuracy: 0.1; P07: Number of speed magnets: Range: 1-100; P09: zero start, non-zero start setting, 0: zero start; 1: non-zero start; P15: Motor drive signal percentage setting (to achieve PO8 speed limit function) Full speed is set to 100 P16: Meter real-time cruise function 1 has this function 0 No such function P99: One-click recovery function (Press the MODE button for 5-6 seconds in the P99 parameter setting interface to restore all the parameters to the initial setting of the first boot) ODO: ODO is cleared (in the ODO parameter setting interface, press the MODE button for a short time and then press and hold for 5M-6 seconds until the number is zero.) battery + battery – electric brake light or horn line(yellow+, black-) PAS(pedal assist sensor) Hall line display line(throttle line) self-learning line motor line (1.Contact the motor line 2.Contact the battery line(red:+ , black:-) 3.Contact the hall line 4.Contact the display line 5.Docking the two self-learning lines, turn on the power supply of the electric vehicle, twist display throttle, the motor will forward or reverse. (Separate the self-learning line when the forward transmission can be. if the reverse, Separate the self-learning line. then Docking the self-learning line again, Separate the self-learning line when the forward transmission can be.) 6.Other functions can be connected as needed.)
