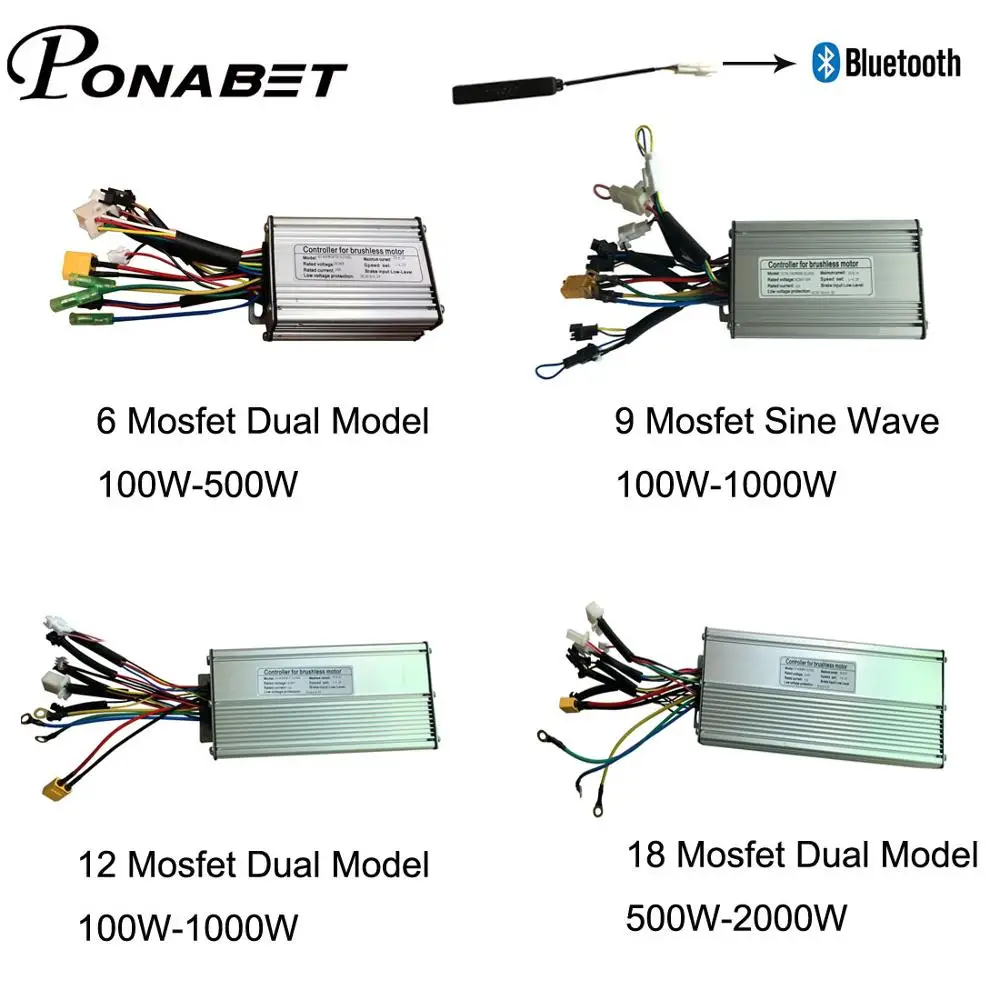

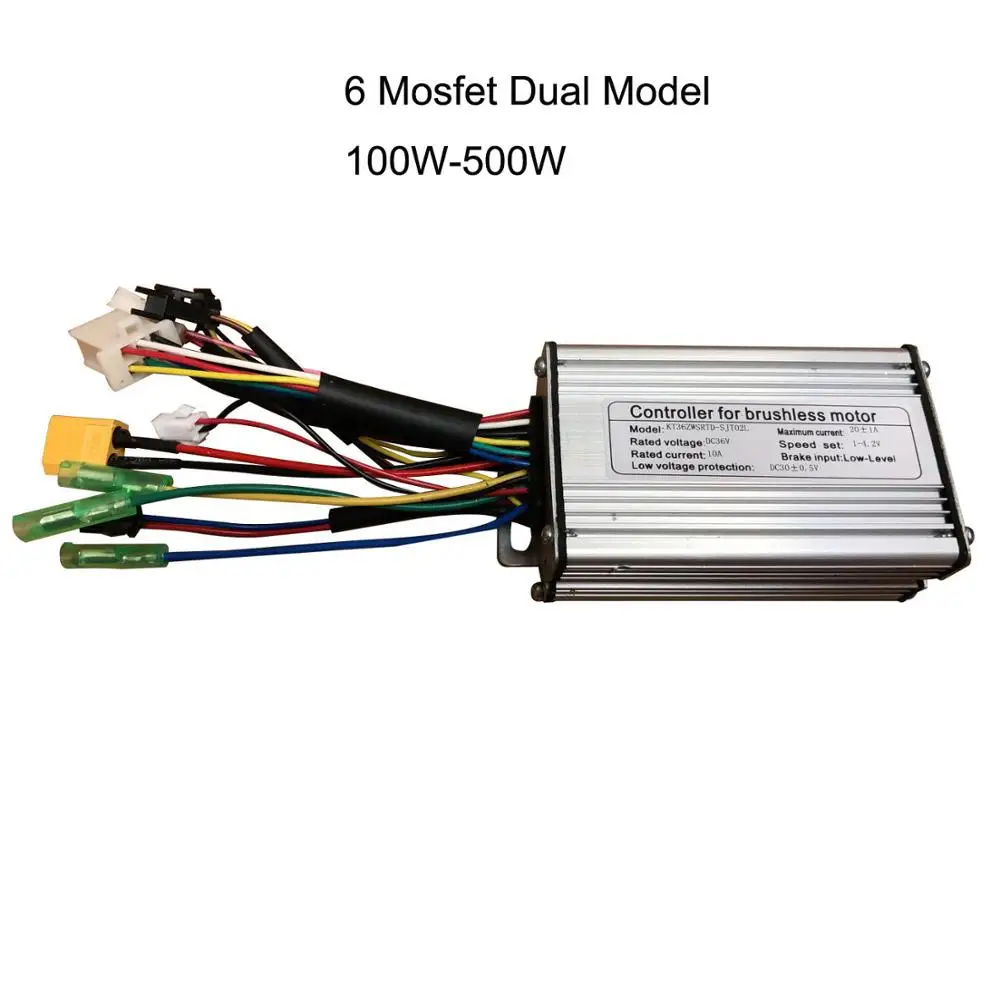

Notice:This Controller work with sensored Brushless DC motor and Kunteng LED LCD Display only Bluetoothfunctionmust work with KT LCD display 6 MosfetDual mode ControllerSuitable for Brushless Gear Hub Motor 250/300/500W 36VUniversal (support both voltage) Dual modeController (more stable, high efficiency, low current consumption,long life) Support LED Control Panel or LCD Control Panel or without any Control Panel (Universal) Support 36VLight Control 9 MosfetSine WaveControllerSuitable for Brushless Non-gear andgearHub Motor 500/1000W 36V or 48V Universal (support both voltage) Sine Wave Controller (more stable, high efficiency, low current consumption,long life) Support LED Control Panel or LCD Control Panel or without any Control Panel (Universal) Support 36V or 48V Light Control 12 MosfetDual modeControllerSuitable for Brushless Non-gear Hub Motor 1000/1500W 48V Universal (support both voltage) Dual mode Controller (more stable, high efficiency, low current consumption,long life) Support LED Control Panel or LCD Control Panel or without any Control Panel (Universal) Support 36V or 48V Light Control 18 MosfetDual modeControllerSuitable for Brushless Non-gear Hub Motor 1000/1500/2000W Bluetooth function must work with KT LCD display 48V Universal (support both voltage) Dual modeController (more stable, high efficiency, low current consumption,long life) Support LED Control Panel or LCD Control Panel or without any Control Panel (Universal) Support 36V or 48V Light Control model 36V 250/350/500W 36/48V 500/1000W 48V 1000/1500W 48V 1500/2000W model 6 Mosfet 9 Mosfet 12 Mosfet 18 Mosfet Ratedvoltage DC36V DC36V/48V DC48V DC48V Ratedcurrent 10A 12A 15A 22A Lowvoltageprotection DC30±0.5V DC30/40±0.5V DC40±0.5V DC40±0.5V Maximumcurrent 20±1A 25±1A 30±1A 45±1A Speedset 1-4.2V 1-4.2V 1-4.2V 1-4.2V Brake input Low-level Low-level Low-level Low-level size 100*61*35mm 125*66*42mm 176*82*41mm 240*82*41mm 36V 250W, 36V 350W ,36V 500W 6Mosfetcontroller ，It is same with picture below -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 48V 500/1000W option9Mosfetcontroller ，It is same with picture below -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 48V 1000/1500W12Mosfetcontroller，It is same with picture below -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 48V 1000/1500/2000W18Mosfetcontroller，It is same with picture below -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 36/48V 500/1000W 9MosfetBluetooth controller ，It is same with picture below If you buy bluetooth version, you can Scan QR code to download app. then you can controller you ebike with your phone. -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 48V 1000/1500/2000W18MosfetBluetooth controller，It is same with picture below If you buy bluetooth version, you can Scan QR code to download app. then you can controller you ebike with your phone. ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 6 Mosfet Controller Wiring Diagram ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 9 12 18 Mosfet Controller Wiring Diagram
